| Photos donated by Dan Collier (VE7DES). To see all the photos Dan has contributed to RadioGallery.net, click here. |

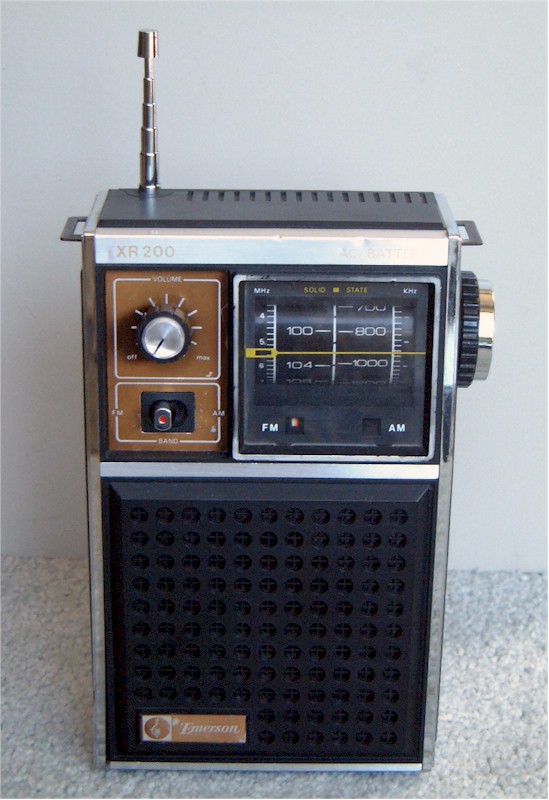

| Solid state AM/FM radio made in Hong Kong. Comprises 10 silicon transistors (e.g. 2SC1416) and an odd number of diodes. Operates from AC line or 4 AA cells. Date codes on the transistors are "4" and "5," suggesting 1975 manufacture. The output stage is a complementary emitter follower without transformers. Audio output is optimistically rated at 3 watts. As usual for Asian-made radios, a material like beeswax has been slathered over the circuit board. Compliance with FCC Part 15 is asserted on the nameplate, and an added sticker assured Canadians that the radio also conformed to the applicable DOC rules. |
|
|
|
|
