Midwest 16-34 (D-16) (1934)

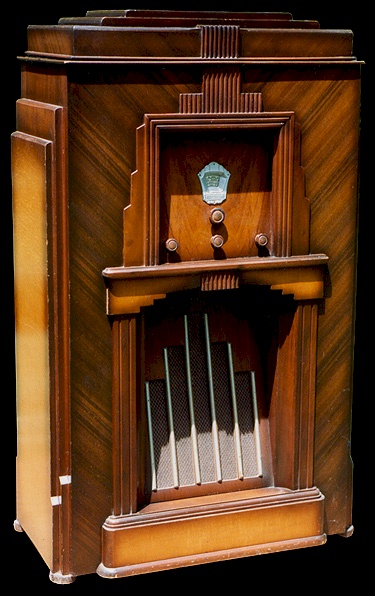

Midwest 16-34 (D-16)
Photos donated by Michael Feldt.
Visit Michael's web site at http://www.indianaradios.com/.

To see all the photos Michael has contributed to RadioGallery.net, click here.
Tube Line Up:
6D6...R.F. Amplifier
6C6...1st. Detector / Mixer
56...Oscillator
78...1st. I.F. Amplifier
78...2nd. I.F. Amplifier
6B7...2nd. Detector
6B7...I.F. AVC
37...Static Control
37...1st. Audio
2 X 37...2nd. Audio
4 X 45...Push - Pull Parallel Audio Output
5Z3...Rectifier

Frequency Ranges:
LW Band...125 kHz to 350 kHz
BC Band...550 kHz to 1500 kHz
P Band...1.5 MHz to 4.5 MHz
SW1 Band...4.5 MHz to 12 MHz
SW2 Band...12 MHz to 32 MHz
